ECNITY 108mm 24VDC 48VDC Centrifugal blower with BLDC motor
Motor Type: BLDC external rotor motor
Impeller Diameter: 108mm
Impeller Material: Galvanized Metal Sheet
Speed Control: 0-10VDC/PWM
Type of Protection: IP44/ IP54
Insulation Class: B
Operation Mode: S1
Bearing: Maintenance-free ball bearing
Ambient Temperature: -25℃~+60℃
Motor Protection: Locked-Rotor Protection, Reverse Polarity Protection, Over Voltage Protection, Soft Start
Certificate: CE, LVD, ROHS, ETL
Overview
- Fan Brand: ECNITY
- Model no.: EN-F108-H051-D024-A01 / EN-S108-H051-D024-A01
- EN-F108-H051-D048-A01 / EN-S108-H051-D048-A01
- Type of voltage: EC-DC input
- Fan Diameter: 108*66mm/ 160*168*115mm
- Housing Material: Metal
- Nominal voltage: 24VDC/ 48VDC
- Nominal voltage range: 18~32VDC/ 36~57VDC
- Fan speed: 3000RPM
- Power: 72W
- Air flow: 255m³/h
Technical Parameters

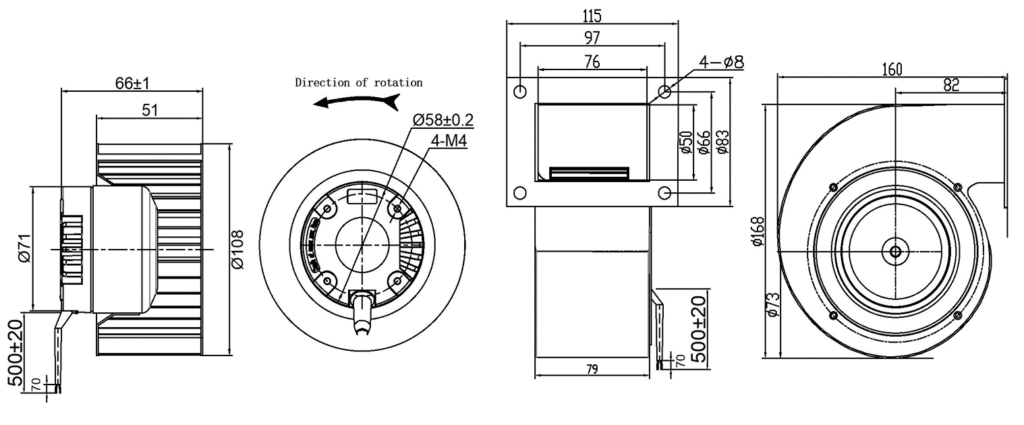

Outline Drawing
Performance Curve
